Q3 QMK/VIA Wired Custom Mechanical Keyboard, Full Aluminum Tenkeyless Layout 87 Keys, Programmable Macro with Hot-Swappable Gateron G Pro Red Switch, Compatible with Mac Windows Linux (Grey)
Q3 QMK/VIA Wired Custom Mechanical Keyboard, Full Aluminum Tenkeyless Layout 87 Keys, Programmable Macro with Hot-Swappable Gateron G Pro Red Switch, Compatible with Mac Windows Linux (Grey)
- Fully Assembled Keychron Q3 Customizable Mechanical Keyboard: With the classic tenkeyless layout, full aluminum CNC machined body, double-gasket design, and QMK/VIA support, the Q3 is designed for premium typing comfort and endless possibility on Mac, Windows and Linux.
- QMK and VIA Support: Designed to enhance your creative workflow, you can easily personalize your own keymap to remap each key and create macros on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.
- Double Gasket Design: In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
- Hot-swappable: Pre-installed the pre-lubed Gateron G Pro mechanical red switch providing unrivaled linear responsiveness with up to 50 million keystroke lifespan. The hot-swappable sockets are mounted on the PCB and compatible with almost all the MX style 3pin and 5pin mechanical switches on the market (including Gateron, Cherry, Kailh, etc.), you can install or change the switches without soldering. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth with the new screw-In PCB stabilizers.
- Easily Assembled: Designed every component easily assembled, you can customize and adjust each component you want. Note: The Q3 even supports third-party stabilizers, including Cherry or Durock.
Product Description
Keychron Q3 QMK/VIA Fully Assembled Custom Mechanical Keyboard
A fully customizable mechanical keyboard with out-of-the-box QMK/VIA support. Anyone can intuitively master any keyboard keys or macro commands through VIA software. The Q3 is designed to be able to assemble easily, so you can customize it the way you want.

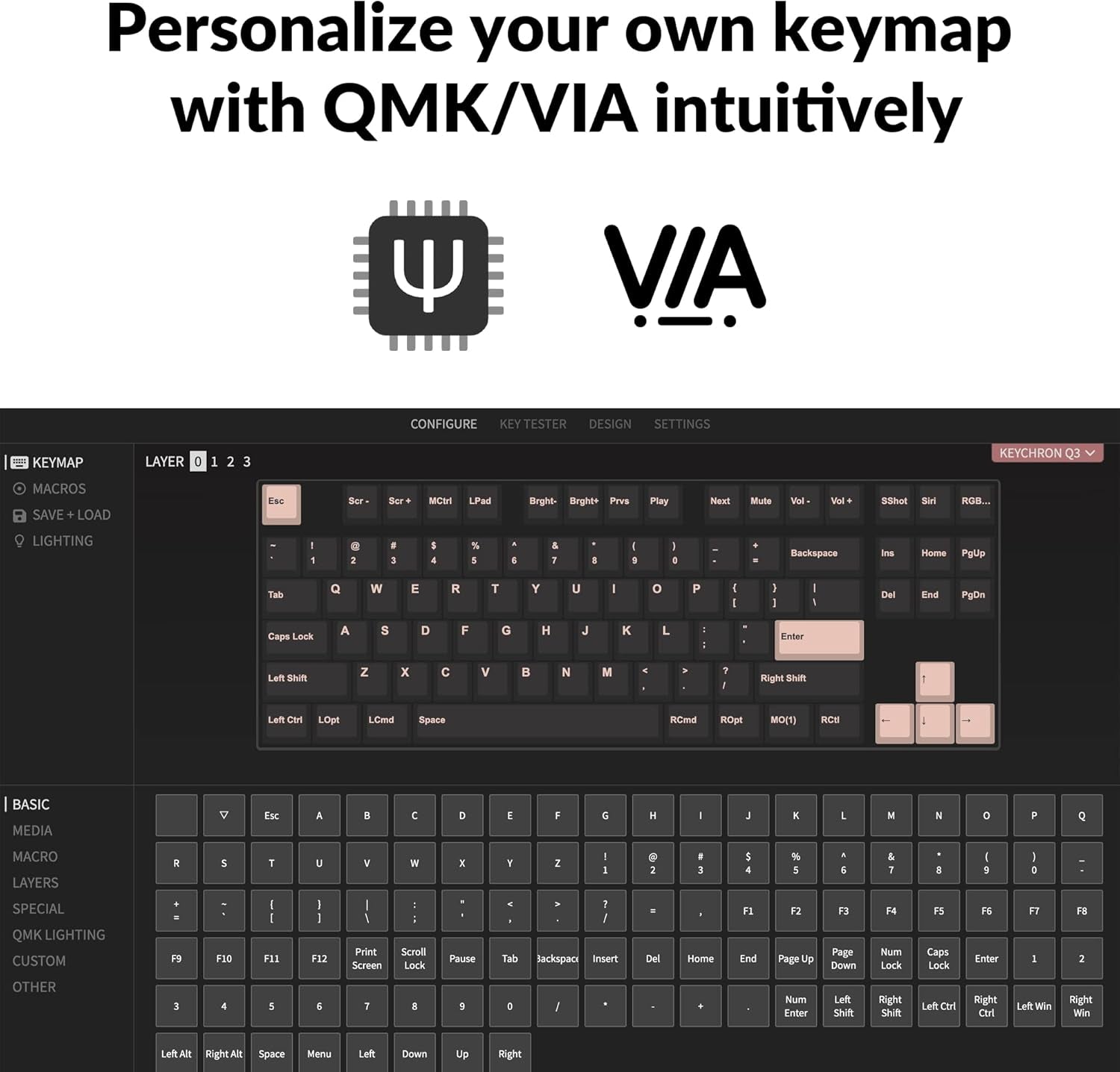

Master Any Keys or Macros with QMK/VIA

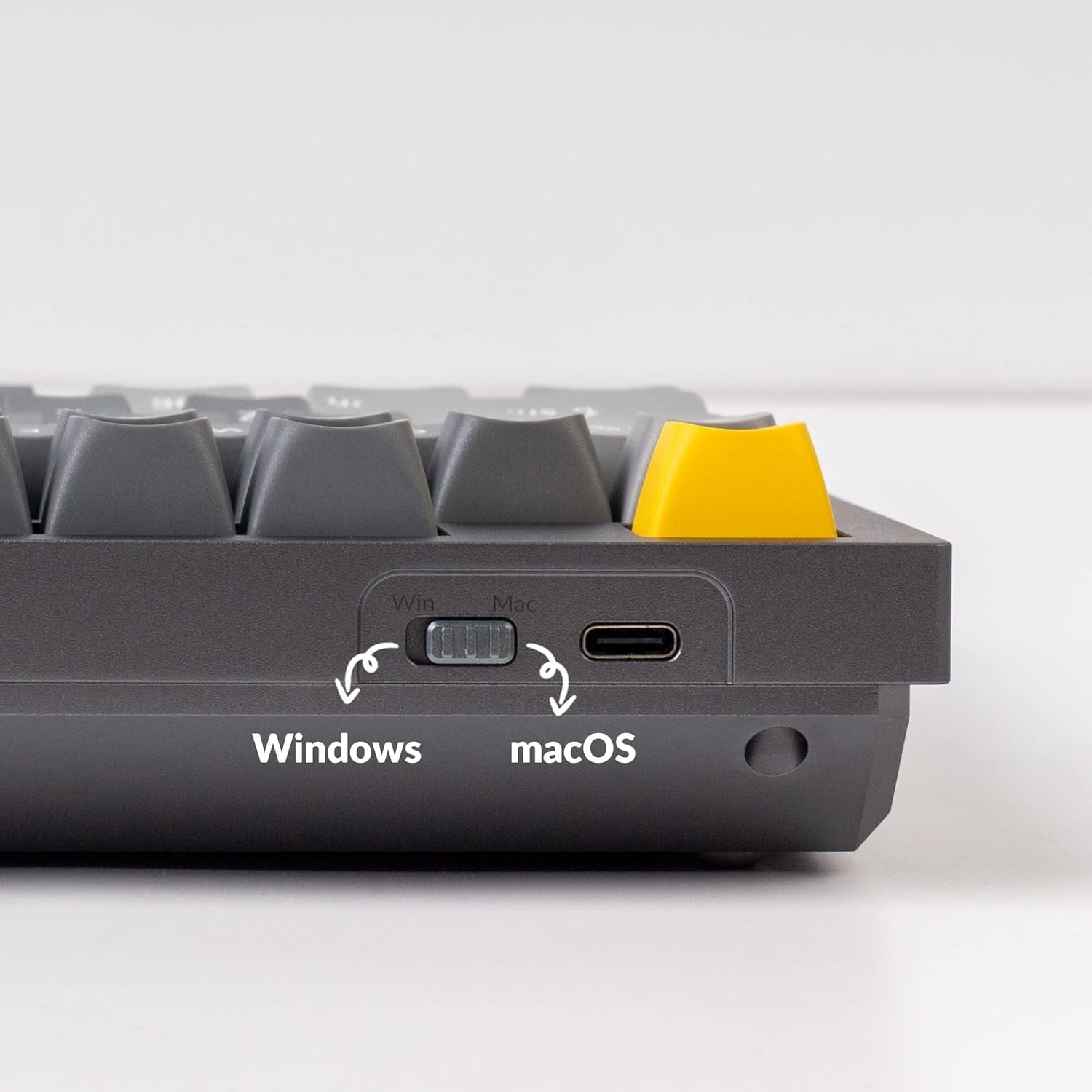

Compatibility with macOS, Windows and Linux
Simply connect the Q3 to your device with a cable, import the Q3 keymap JSON file into the VIA software, drag and drop your favorite keys or macro commands to remap any key you want on macOS, Windows, or Linux operating systems and save two different layouts on the keyboard, e.g.: create a macro command of a screenshot on macOS. Check our user guide or user manual for more instructions.
A brand new ultra-low-power Arm structure MCU which is powerful, and armed with 128K Flash will provide more flexibility for developers.
Keychron Q3 Highlights
- QMK & VIA Support
- Hot-Swappable Sockets
- For macOS, Windows & Linux
- Double-Gasket Design
- Full Aluminum Body
- OSA Profile Double-shot PBT Keycaps
- Pre-lubed Gateron G Pro Red Switch Pre-installed
- Screw-In PCB Stabilizers

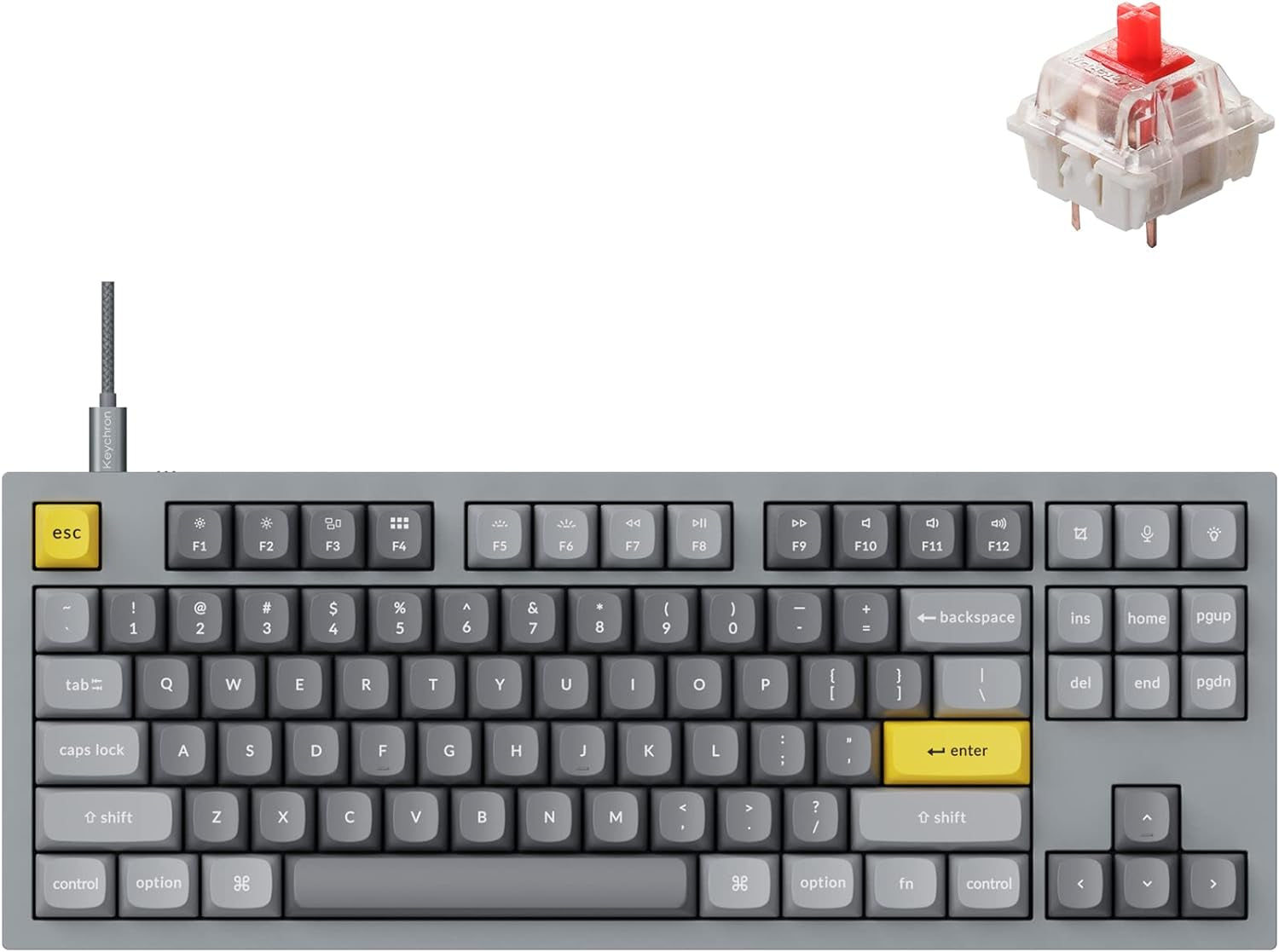

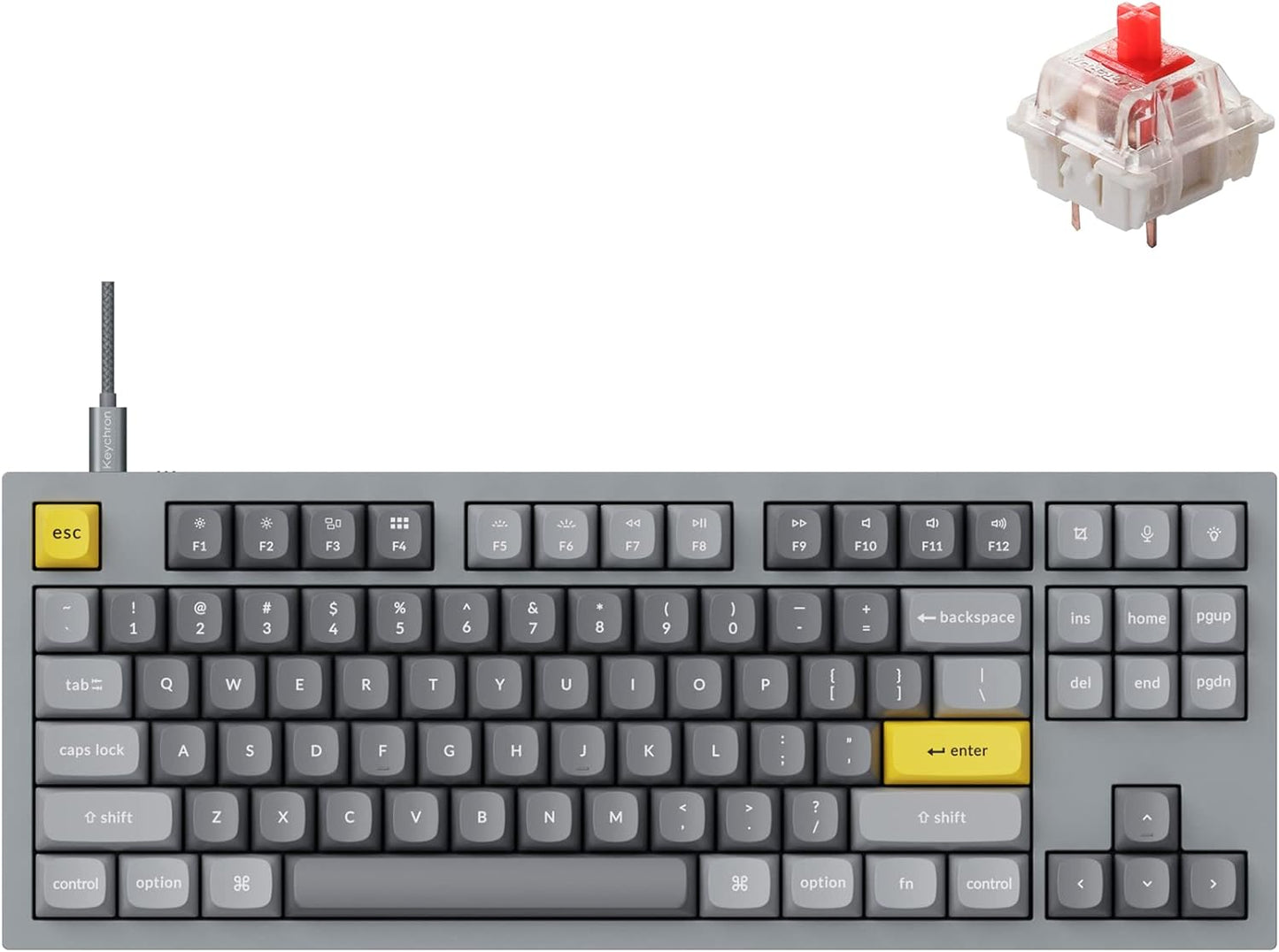

Full Aluminum Tenkeyless Layout
Crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make a solid metal art on the desk that is the Q3.
Double-Gasket Design
Allows the Q3 keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound. We added silicone pads between the top and bottom cases besides gaskets on the plates to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals.

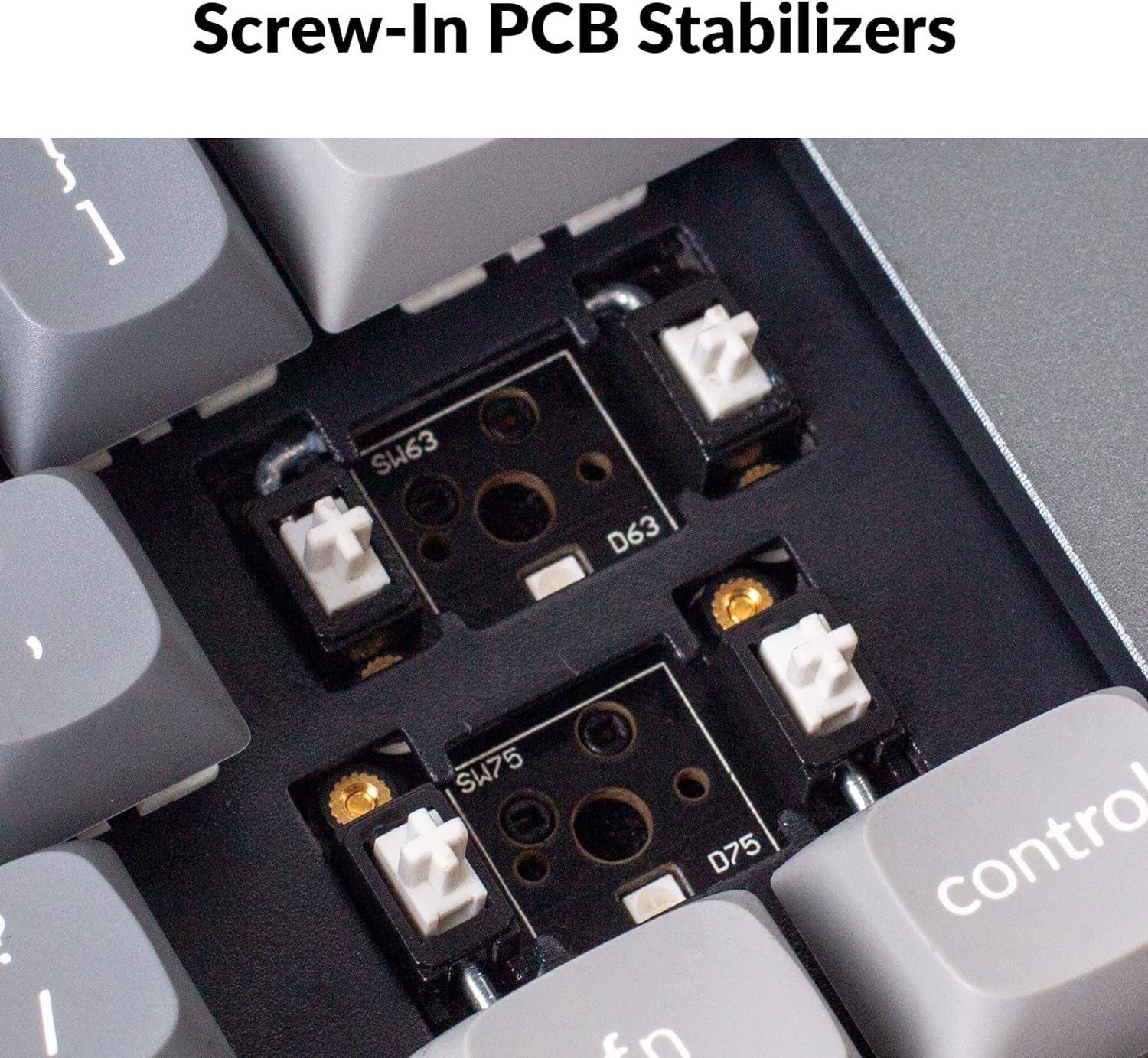

All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Q3 also supports third-party stabilizers, including Cherry or Durock.

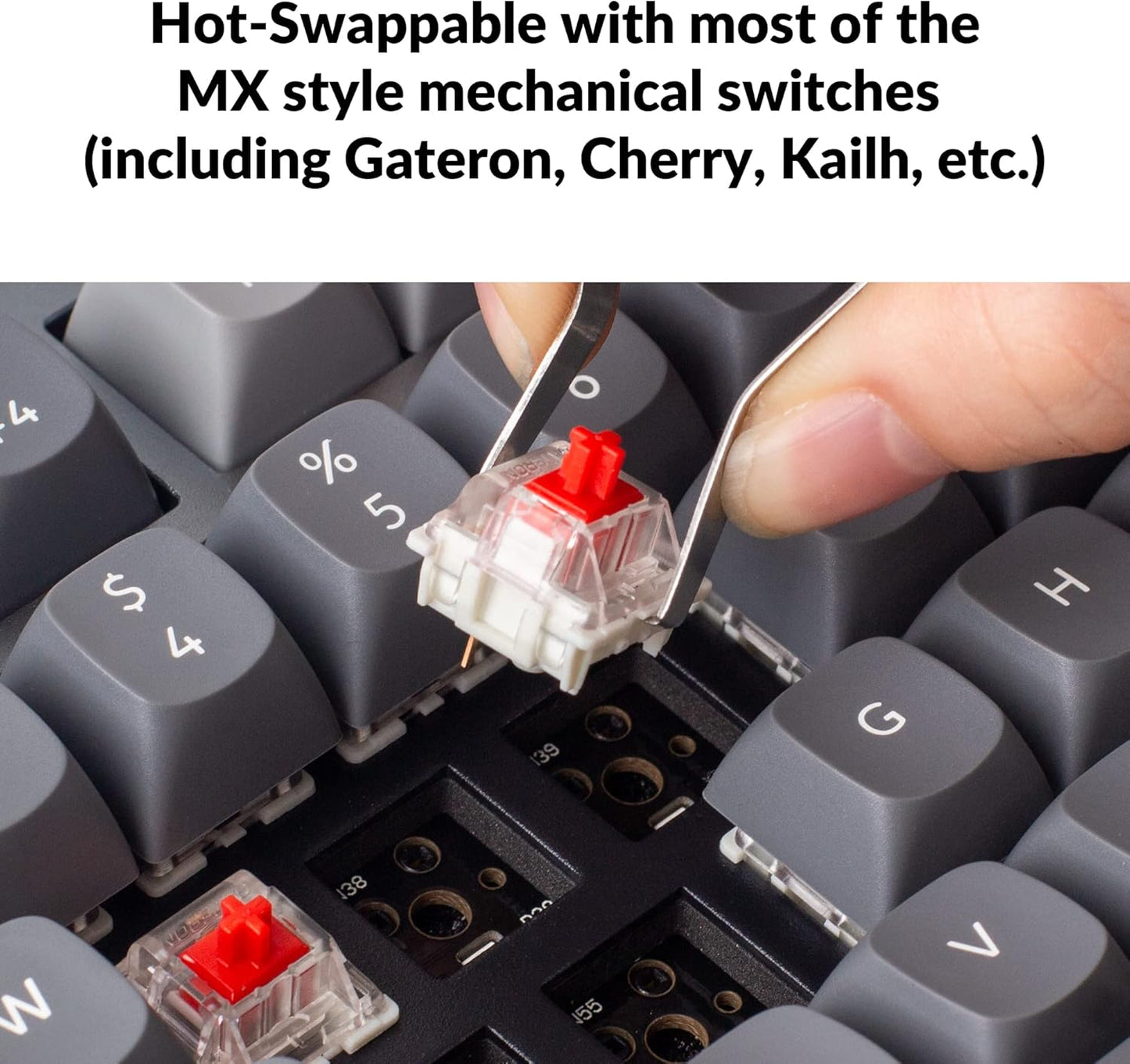

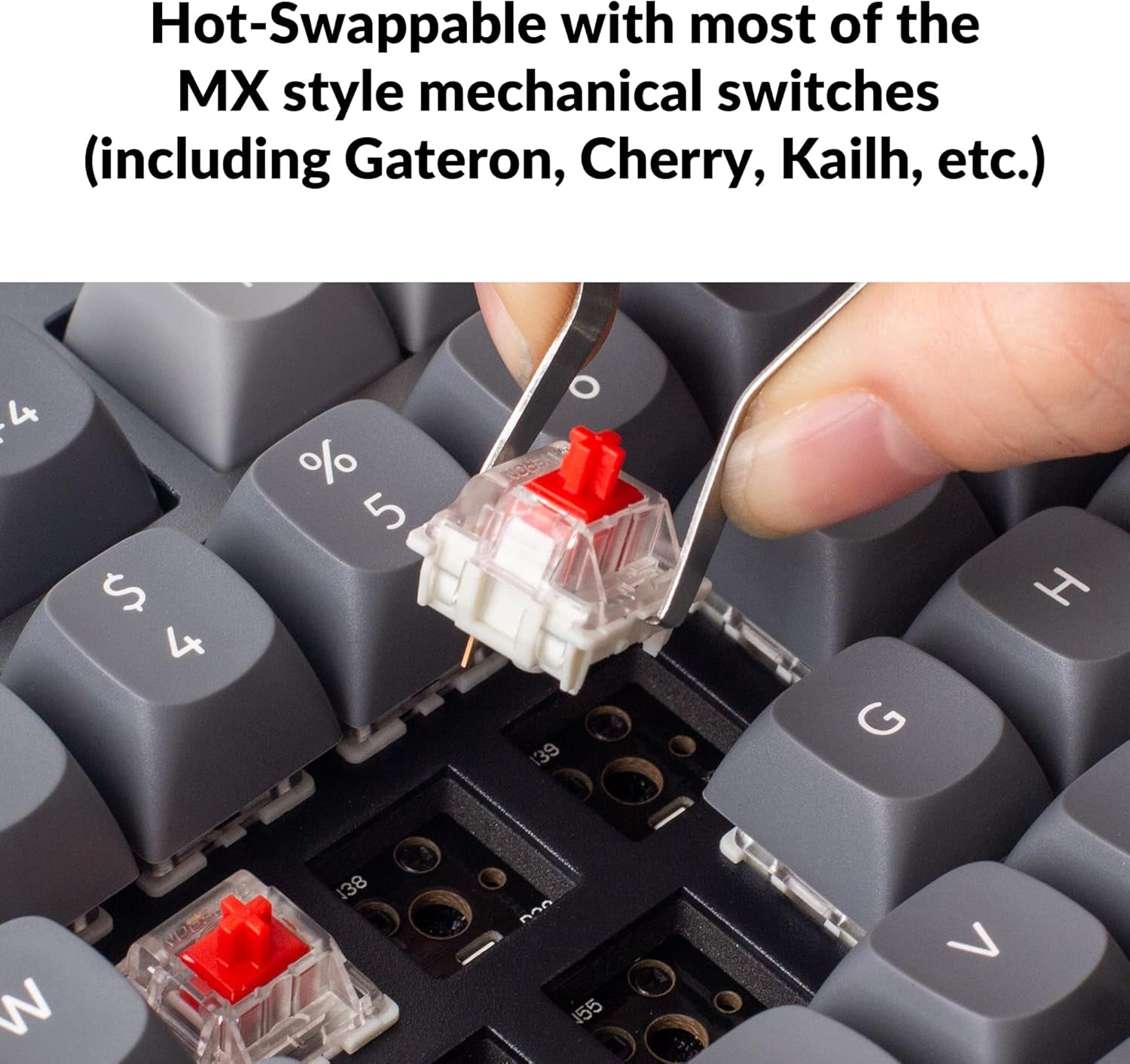

Hot-swappable
The PCB socket of Q3 is compatible with almost all the MX style 3pin and 5pin mechanical switches on the market(including Cherry, Gateron, Kailh, Panda, etc.) without soldering required.
Pre-lubed Gateron G Pro Red Switch
The pre-installed Gateron G Pro mechanical switch given that 2 ±0.6mm pre-travel and 45 ±15gf operating force, features a nice linear feeling while satisfying your finger with up to 50 million keystroke lifespan.

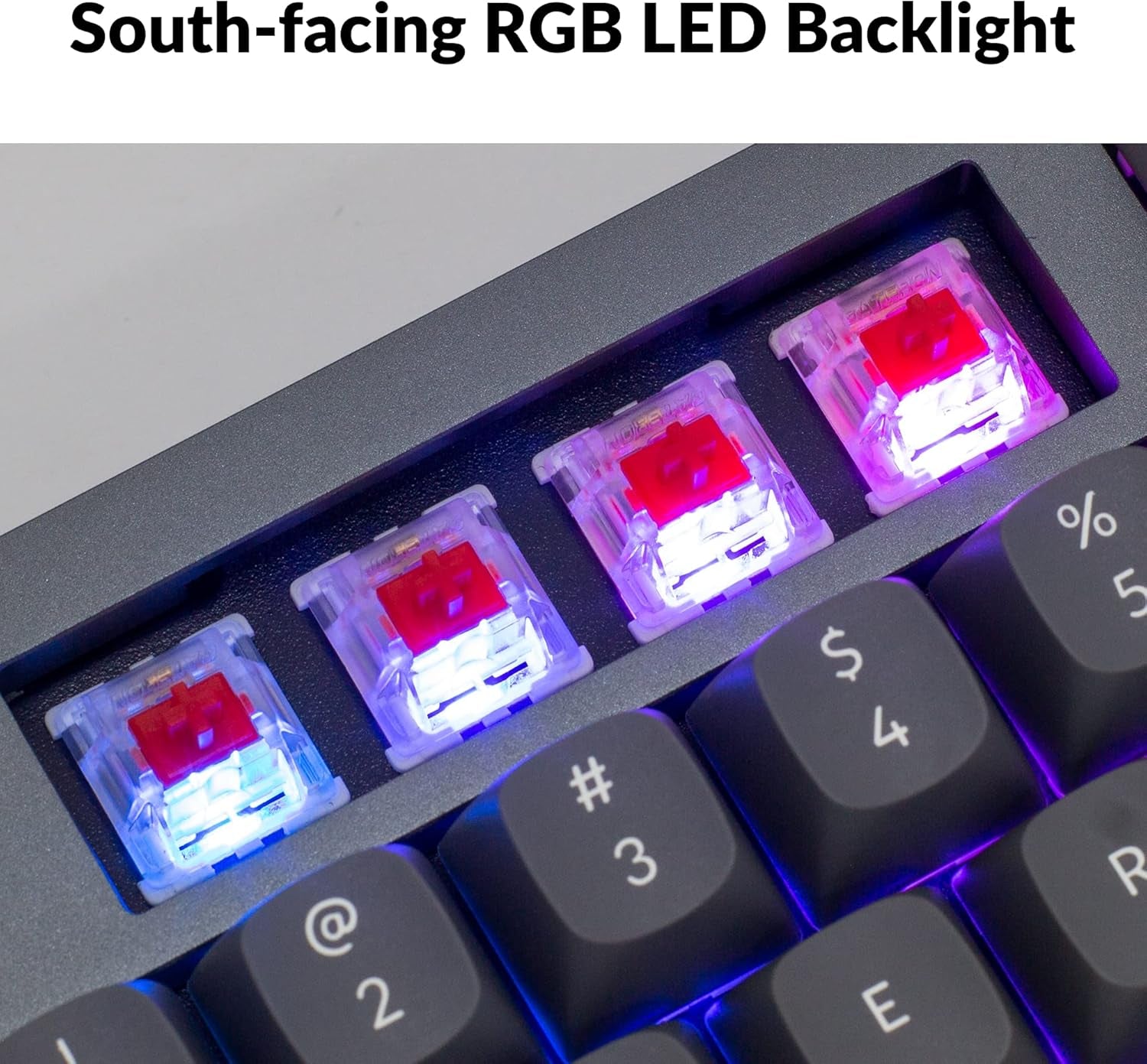

South-facing RGB LED Lights
Designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference with other OEM or Cherry-profile alternative keycaps.

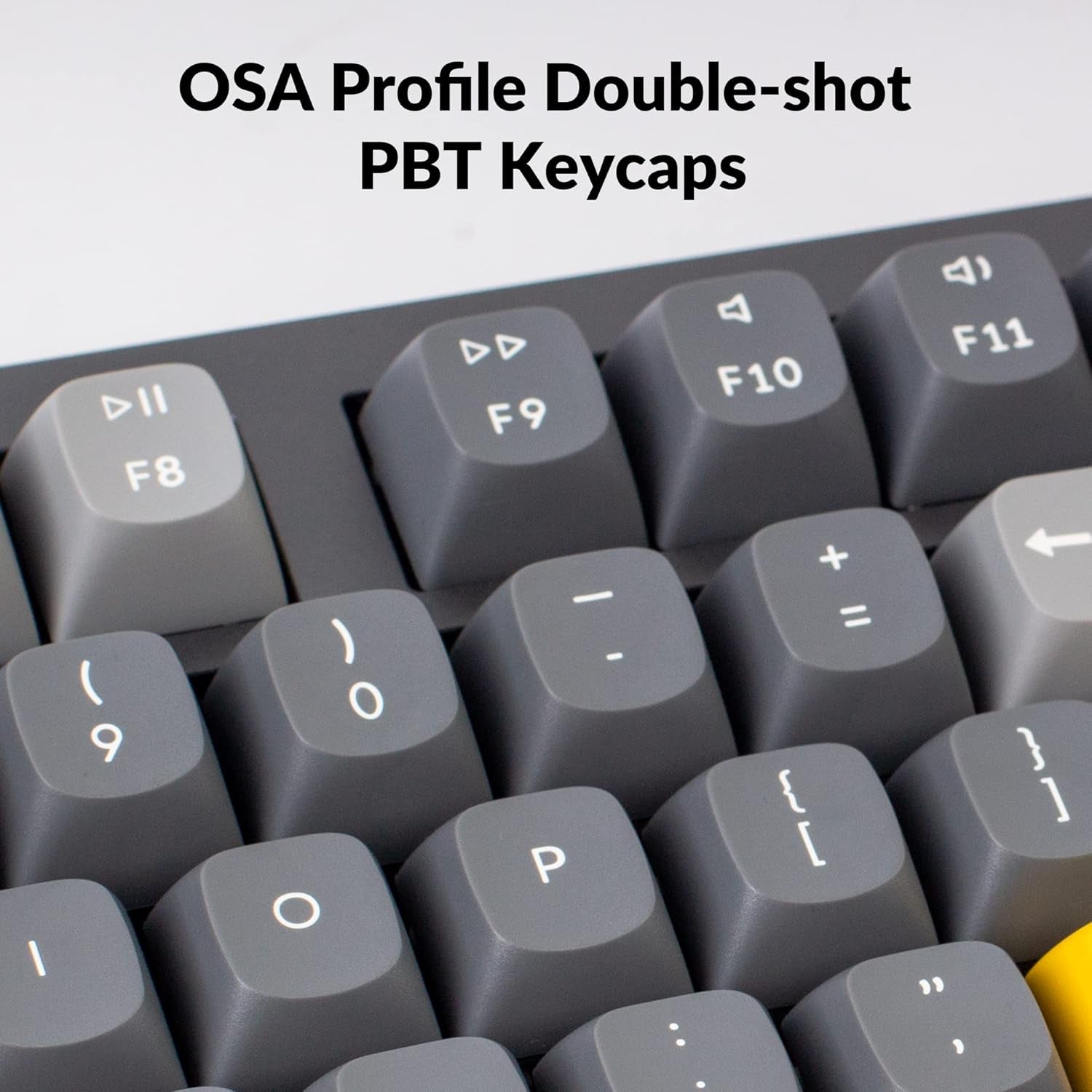

OSA Profile Double-shot PBT Keycaps
Equipped the new double-shot PBT keycaps with ''OSA profile'' (OEM spherical angled) will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.
Please Note: All tools are placed on bottom of the box.
Specification
| Body Material | Full CNC machined aluminum |
| Plate Material | Steel |
| Keycaps | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Polling Rate | 1000 Hz |
| Stabilizers | Screw-in PCB stabs |
| Connectivity | Type-C cable + Type-A to Type-C adapter |
| Backlight | South-facing RGB LED |
| Switches | Gateron G Pro Red Switches Pre-installed; Hot-swappable (5 pin & 3 pin) |
| Weight | 4.41 ± 0.02lb（2000 ± 10g） |
| Dimension | 14.37 * 5.39 * 1.37inches（365.1 * 137 * 35mm） |
